Constructing an Optimal Behavior Basis for the Option Keyboard

Lucas N. Alegre¹ Ana L. C. Bazzan¹ André Barreto² Bruno C. da Silva³

Motivation

When solving sequential decision-making problems, humans

combine previously-learned behaviors to quickly adapt to new tasks

Reinforcement Learning (RL)

Mastering the game of Go with deep neural networks and tree search. Silver, D., Huang, A., Maddison, C. et al.. Nature 529, (2016)

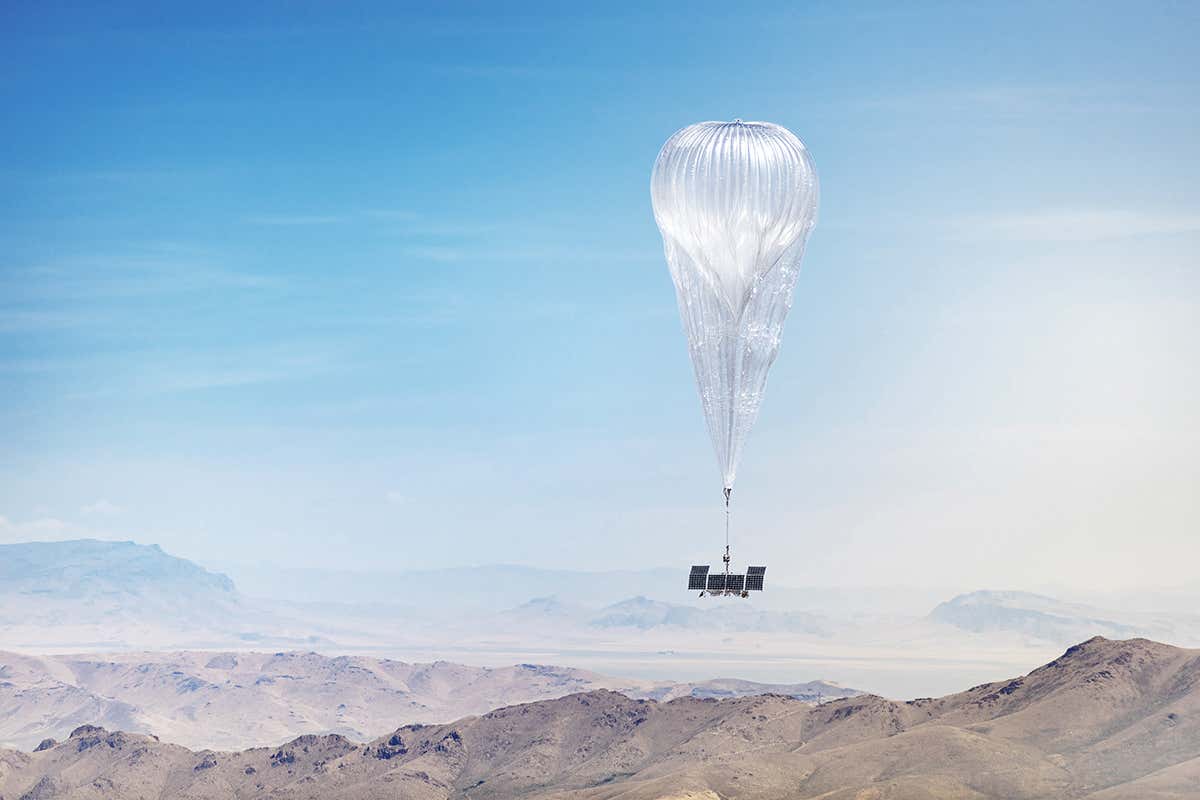

Autonomous navigation of stratospheric balloons using reinforcement learning. Bellemare, M.G., Candido, S., Castro, P.S. et al.. Nature 588, (2020)

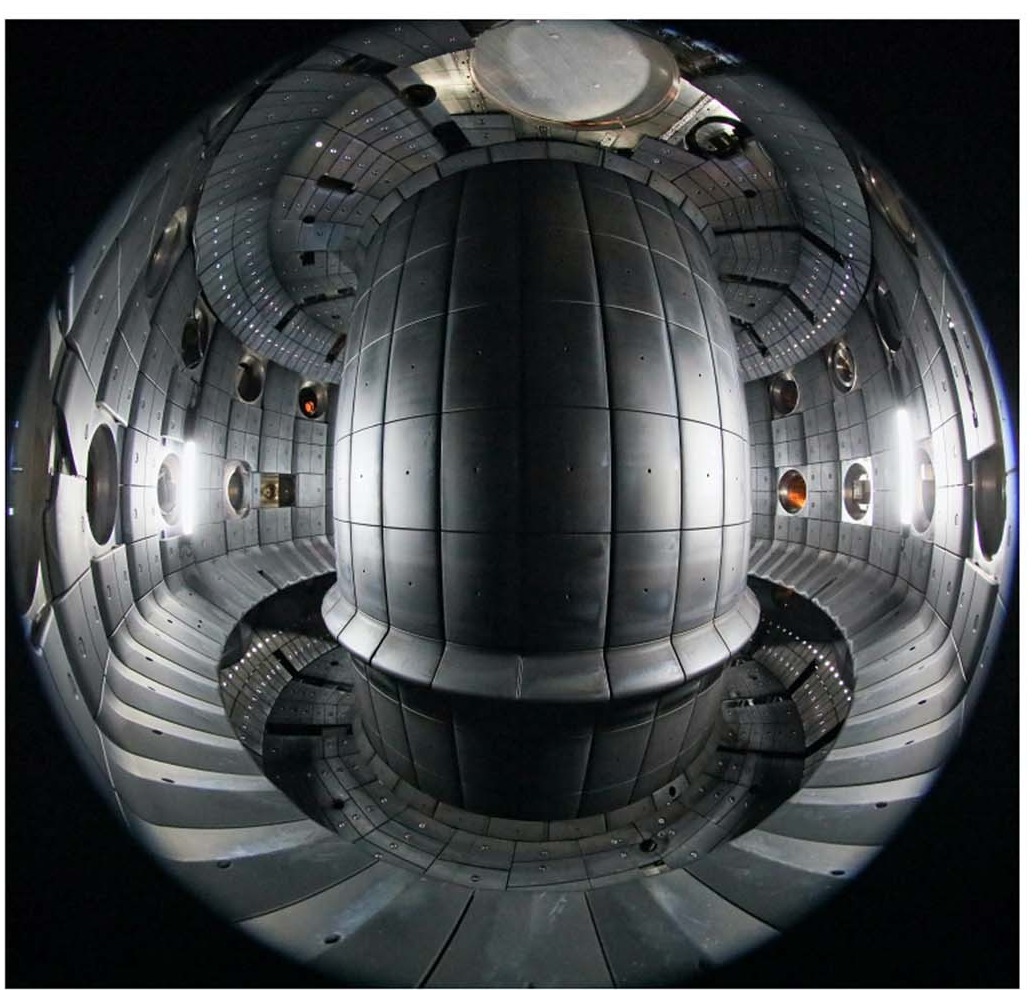

Magnetic control of tokamak plasmas through deep reinforcement learning. Degrave, J., Felici, F. et al. Nature 602, (2022)

… and many other applications

A Long-Term Objective of AI:

How to build generalist AI agents capable of learning multiple behaviors and solve multiple tasks?

Successor Features & GPE

Reward function is a linear combination of features \;\phi(s,a,s') \in \mathbb{R}^d

r_{\textcolor{#ED7D31}{\boldsymbol{w}}}(s,a,s') = \phi(s,a,s') \cdot \textcolor{#ED7D31}{\boldsymbol{w}}

Successor Features (SFs)

\psi^{\textcolor{#0070C0}{\pi}}(s,a) \triangleq \mathbb{E}_{\textcolor{#0070C0}{\pi}}\left[\sum_{i=0}^{\infty} \gamma^i \phi_{t+i} \;\middle|\; S_t = s, A_t = a\right]

E.g.:

\psi^{\textcolor{#0070C0}{\pi}}(s,a) \triangleq \mathbb{E}_{\textcolor{#0070C0}{\pi}}\left[\begin{array}{rl} \textcolor{#548235}{\mathit{velocity}_t} & + \gamma\, \textcolor{#548235}{\mathit{velocity}_{t+1}} + \dots \\ \textcolor{#C00000}{\mathit{energy}_t} & + \gamma\, \textcolor{#C00000}{\mathit{energy}_{t+1}} + \dots \\ \textcolor{#203864}{\mathit{distance}_t} & + \gamma\, \textcolor{#203864}{\mathit{distance}_{t+1}} + \dots \end{array}\right]

Fast reinforcement learning with generalized policy updates. Barreto et al. Proceedings of the National Academy of Sciences, 2020.

Successor Features & GPE

Reward function is a linear combination of features \;\phi(s,a,s') \in \mathbb{R}^d

r_{\textcolor{#ED7D31}{\boldsymbol{w}}}(s,a,s') = \phi(s,a,s') \cdot \textcolor{#ED7D31}{\boldsymbol{w}}

Successor Features (SFs)

\psi^{\textcolor{#0070C0}{\pi}}(s,a) \triangleq \mathbb{E}_{\textcolor{#0070C0}{\pi}}\left[\sum_{i=0}^{\infty} \gamma^i \phi_{t+i} \;\middle|\; S_t = s, A_t = a\right]

Generalized Policy Evaluation (GPE)

directly evaluates how well a policy \pi would perform under

any reward function r_{\textcolor{#ED7D31}{\boldsymbol{w}_i}} (without having to test/deploy it!):

q^{\textcolor{#0070C0}{\pi}}_{\textcolor{#ED7D31}{\boldsymbol{w}_i}}(s,a) = \psi^{\textcolor{#0070C0}{\pi}}(s,a) \cdot \textcolor{#ED7D31}{\boldsymbol{w}_i}

Fast reinforcement learning with generalized policy updates. Barreto et al. Proceedings of the National Academy of Sciences, 2020.

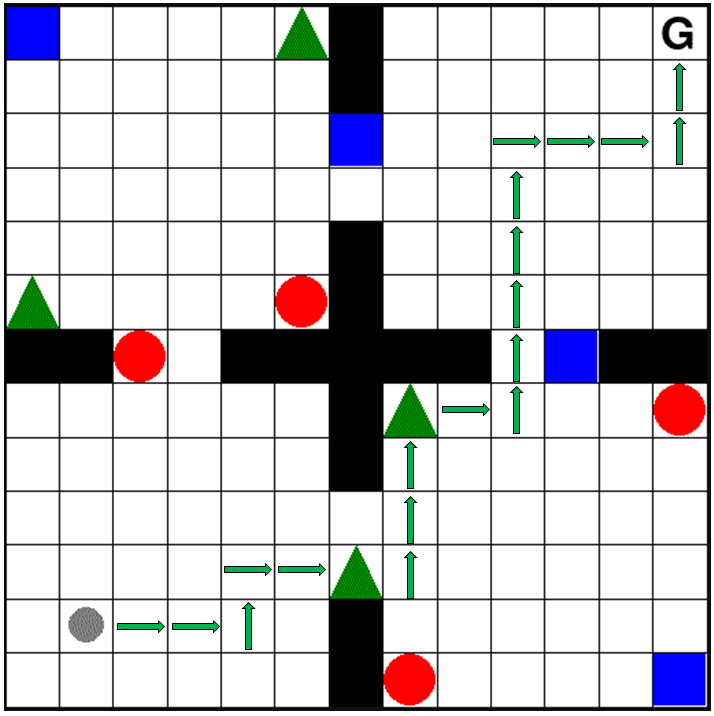

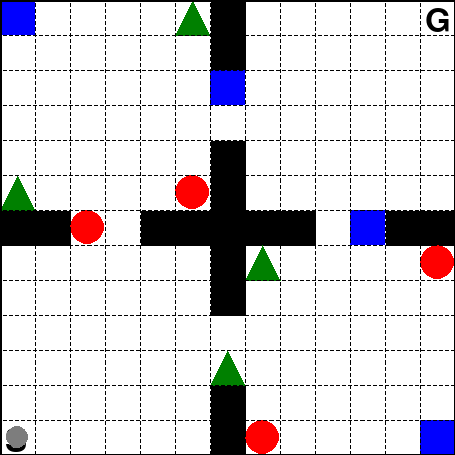

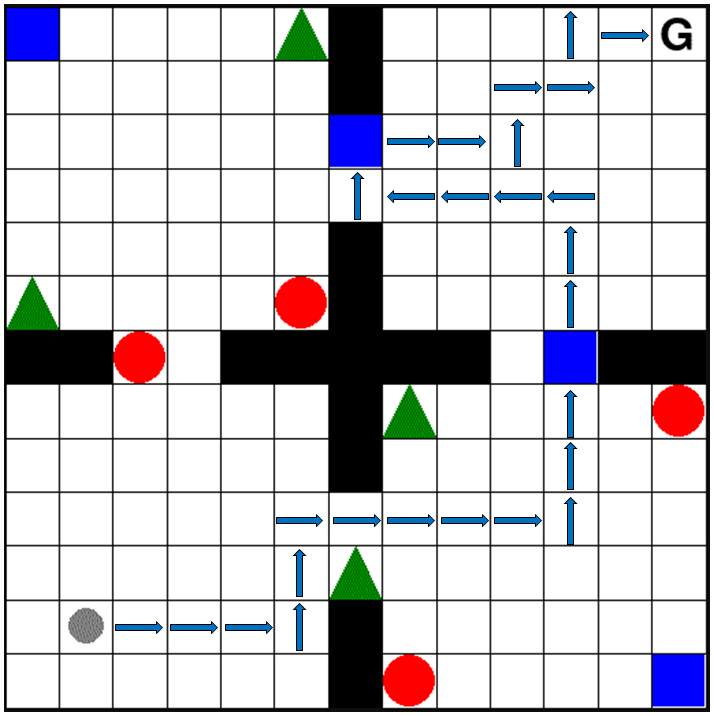

Combining Behaviors via GPI

\textcolor{#00B050}{\pi_1}

w = [1,0,0]

\textcolor{#0070C0}{\pi_2}

w = [0,1,0]

zero-shot

\pi^{GPI}(s;\textcolor{#ED7D31}{w}) \in \operatorname*{arg\,max}_{\textcolor{#C00000}{a}\in\mathcal{A}}\ \max_{\pi\in\{\textcolor{#00B050}{\pi_1},\textcolor{#0070C0}{\pi_2}\}} q^{\pi}_{\textcolor{#ED7D31}{w}}(s,\textcolor{#C00000}{a})

\textcolor{#ED7D31}{w} = [\textcolor{#00B050}{1},\textcolor{#0070C0}{1},0]

Generalized Policy Improvement (GPI)

is the computation of a policy \pi' that improves

over a set of policies \Pi given any new reward weights \boldsymbol{w}

\pi^{GPI}(s\,;\textcolor{#ED7D31}{w}) \in \operatorname*{arg\,max}_{\textcolor{#C00000}{a}\in\mathcal{A}}\ \max_{\textcolor{#0070C0}{\pi}\in\Pi}\ q^{\textcolor{#0070C0}{\pi}}_{\textcolor{#ED7D31}{w}}(s,\textcolor{#C00000}{a})

GPI Theorem

q^{GPI}_{\textcolor{#ED7D31}{w}}(s,a) \geq \max_{\textcolor{#0070C0}{\pi}\in\Pi} q^{\textcolor{#0070C0}{\pi}}_{\textcolor{#ED7D31}{w}}(s,a) \qquad \textit{for any } \textcolor{#ED7D31}{w} \in \mathcal{W}

However, there are no guarantees that \boldsymbol{\pi^{GPI}} will be optimal for a new task!

Successor Features for Transfer in Reinforcement Learning. Barreto et al. (NeurIPS 2017)

Option Keyboard (OK)

\pi^{OK}_{\textcolor{#7030A0}{\omega}}(s\,;\Pi) \in \operatorname*{arg\,max}_{\textcolor{#C00000}{a}\in\mathcal{A}}\ \max_{\textcolor{#0070C0}{\pi}\in\Pi}\ \psi^{\textcolor{#0070C0}{\pi}}(s,\textcolor{#C00000}{a}) \cdot \textcolor{#7030A0}{\omega}(s)

Learned meta-policy: \;\textcolor{#7030A0}{\omega}(s) \to \textcolor{#7030A0}{\boldsymbol{z}} \in \mathbb{R}^d

Generalizes GPI
Generates more complex behaviors

The Option Keyboard: Combining Skills in Reinforcement Learning. Barreto et al. (NeurIPS 2019)

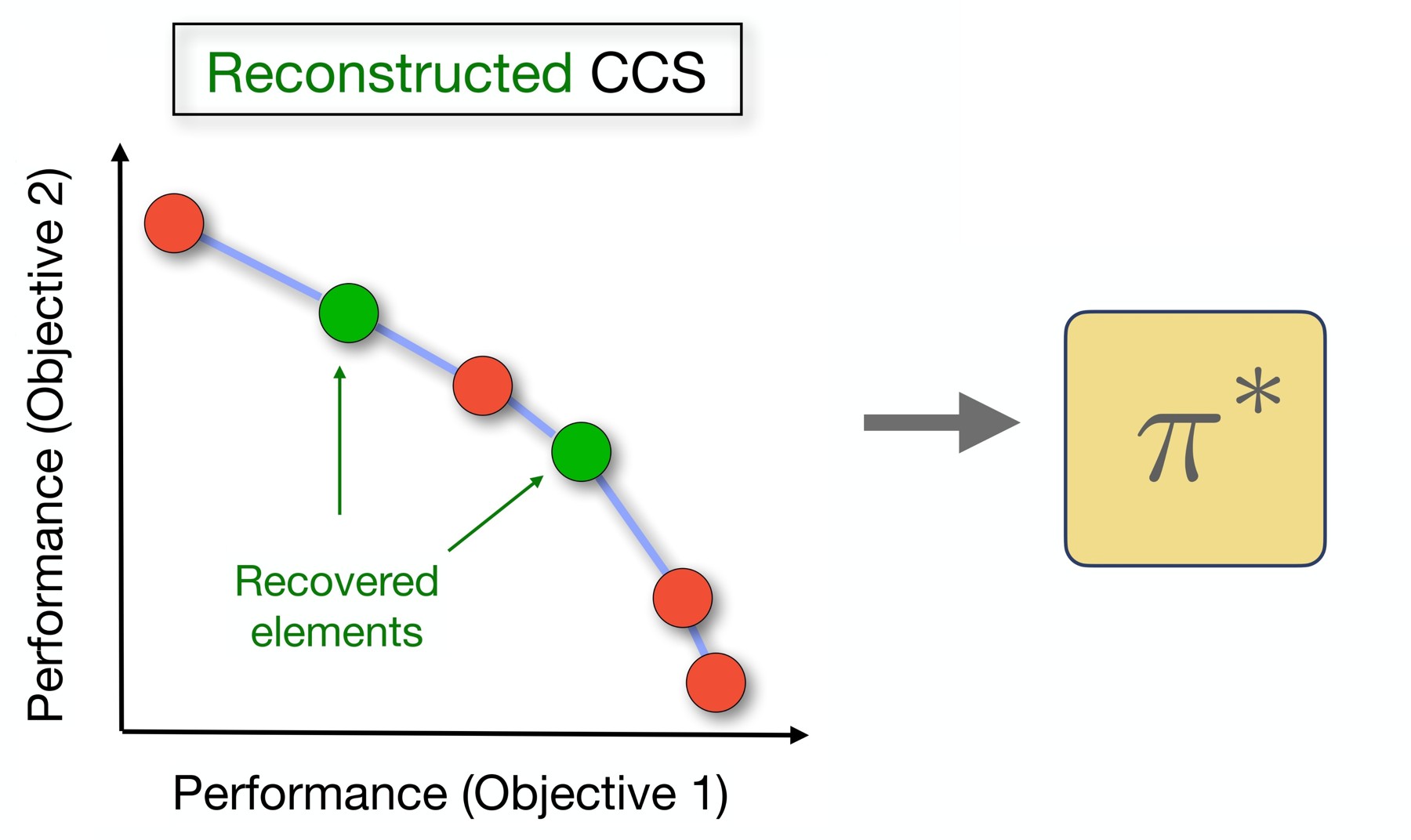

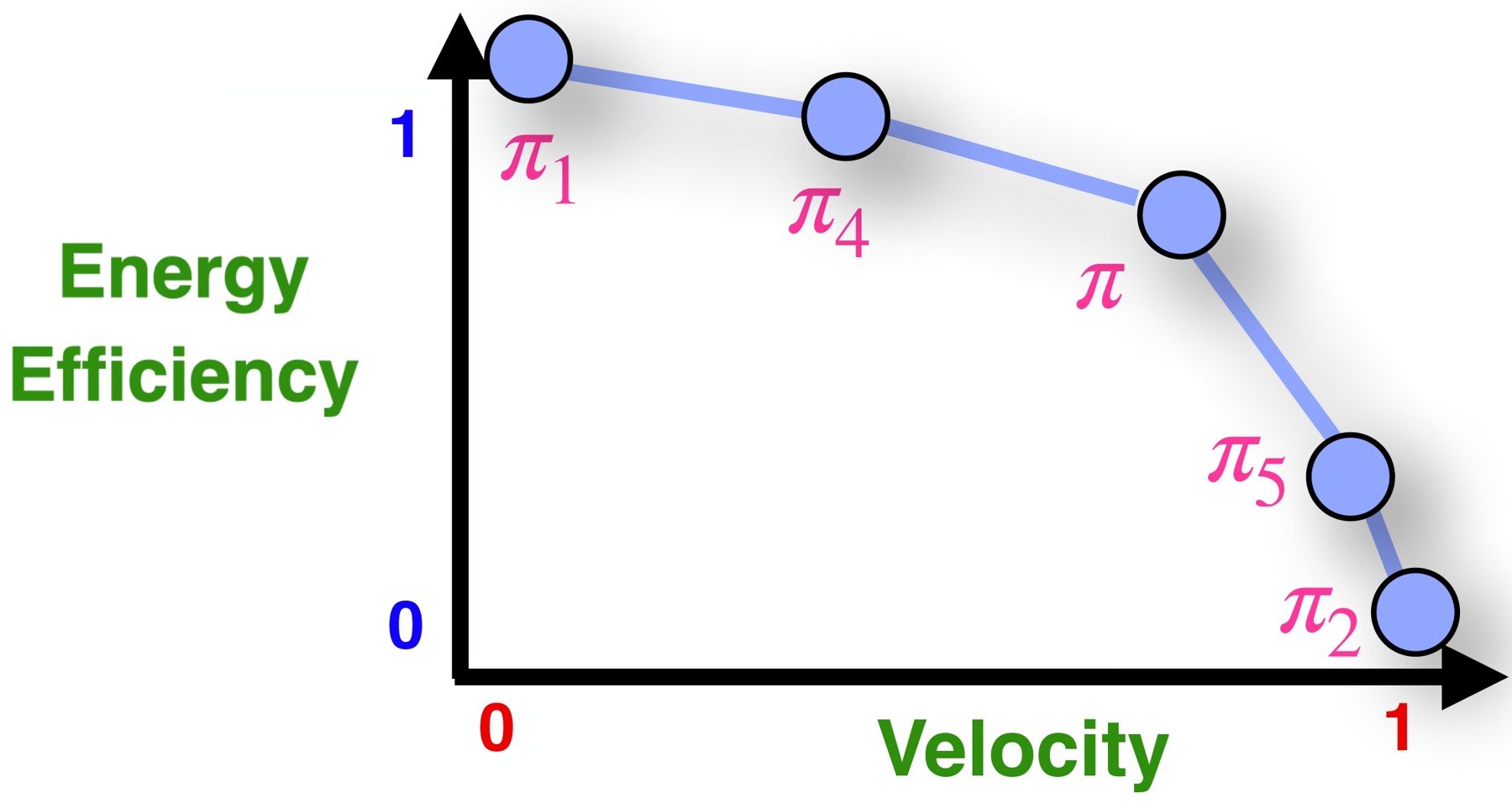

Convex Coverage Set (CCS)

If \Pi is a set of policies

whose SFs form a CCS, then

GPI directly identifies optimal policies

for any new tasks!

Theorem 3.2. Let \Pi \equiv \{\pi_i\}_{i=1}^n be a set of policies such that the set of their expected SFs, \Psi = \{\psi^{\pi_i}\}_{i=1}^n, constitute a CCS (Eq. (14)). Then, given any weight vector \mathbf{w}\in\mathcal{W}, the GPI policy \pi^{GPI}(s;\mathbf{w}) \in \arg\max_{a\in\mathcal{A}} \max_{\pi\in\Pi} q^{\pi}_{\mathbf{w}}(s,a) is optimal with respect to \mathbf{w}: v^{GPI}_{\mathbf{w}} = v^*_{\mathbf{w}}.

\text{CCS} = \{\boldsymbol{\psi}^{\pi} \mid \exists\, \mathbf{w} \text{ s.t. } \forall \boldsymbol{\psi}^{\pi'},\ \boldsymbol{\psi}^{\pi} \cdot \mathbf{w} \geq \boldsymbol{\psi}^{\pi'} \cdot \mathbf{w}\}

Optimistic Linear Support and Successor Features as Basis for Optimal Policy Transfer. Alegre et al. (ICML 2022)

Main Challenge

Convex Coverage Set (CCS)

The size of the CCS grows

exponentially with the

number of reward features!

Often infeasible to compute

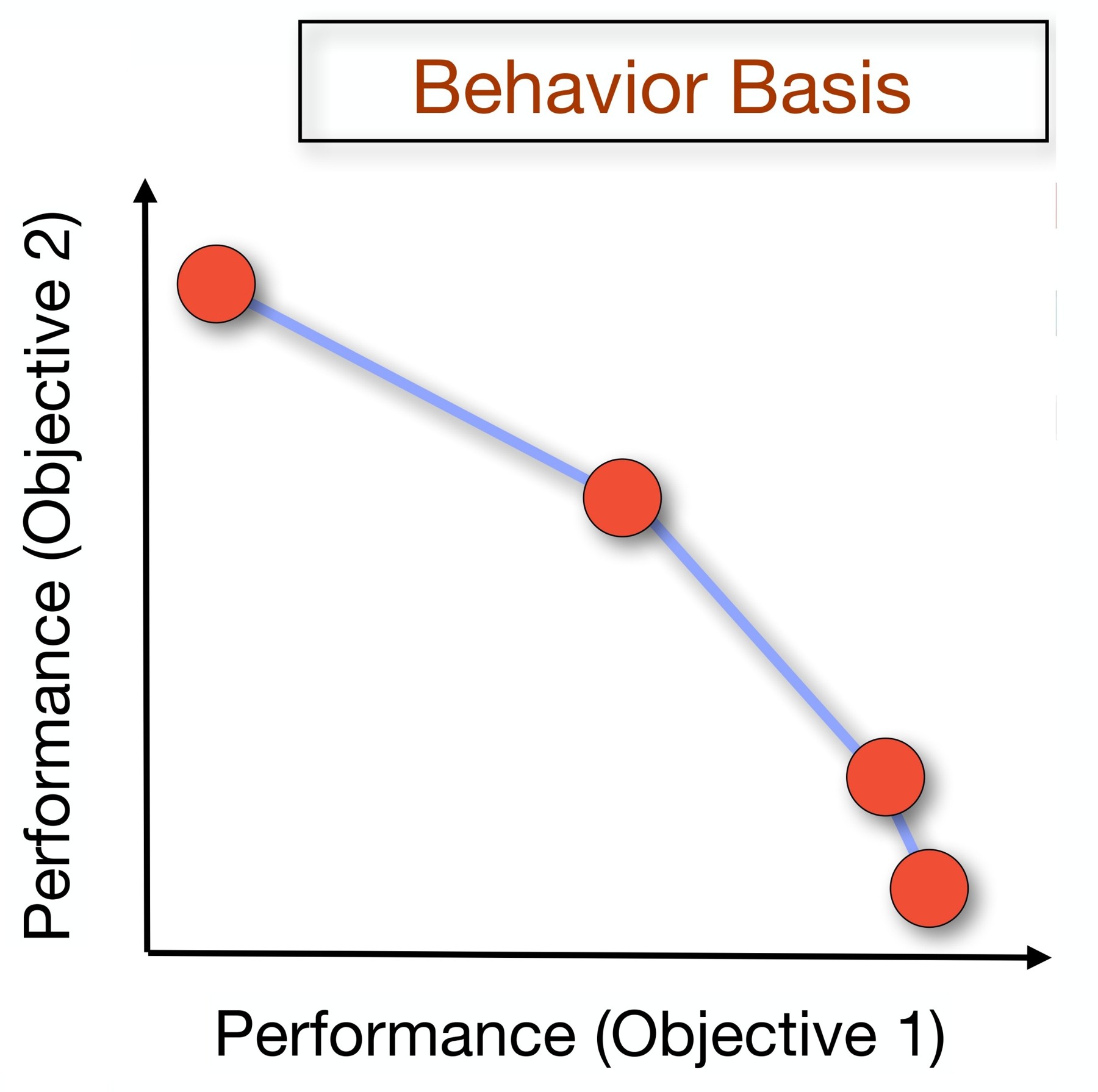

Option Keyboard Basis (OKB)

Learns a small number of base policies → a behavior basis (\Pi_\mathrm{k})
Given new tasks w (linear weights describing a reward)
- Our method combines policies from the behavior basis
- Combination mechanism → Option Keyboard (\boldsymbol{\omega})
Directly identifies the optimal solution for the new task
- No additional training needed!
- Zero shot solution to any new linear weights

Option Keyboard Basis (OKB)

\Pi_\mathrm{k}

Task w

Meta-Policy \omega

\pi^{OK}_{\textcolor{#7030A0}{\omega}}(s,\textcolor{#ED7D31}{w}\,;\Pi_\mathrm{k}) \in \operatorname*{arg\,max}_{\textcolor{#C00000}{a}\in\mathcal{A}}\ \max_{\textcolor{#0070C0}{\pi}\in\Pi_\mathrm{k}}\ \psi^{\textcolor{#0070C0}{\pi}}(s,\textcolor{#C00000}{a}) \cdot \textcolor{#7030A0}{\omega}(s,\textcolor{#ED7D31}{w})

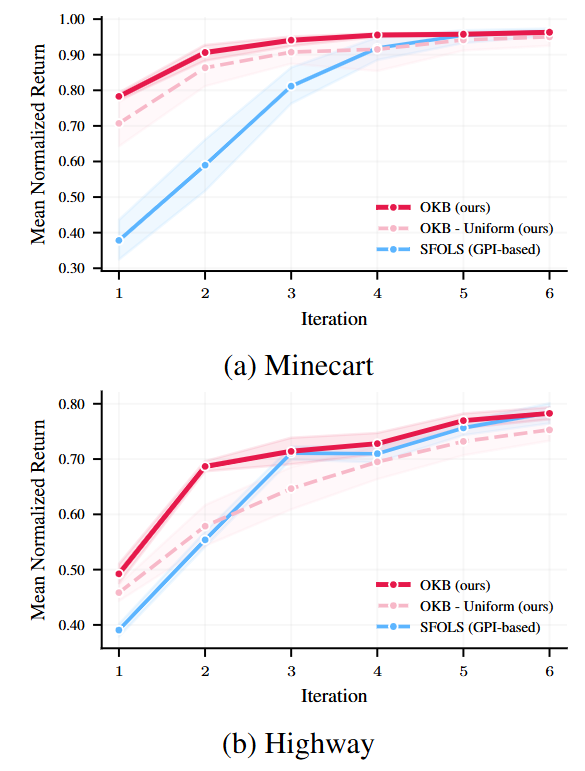

Zero-Shot Performance

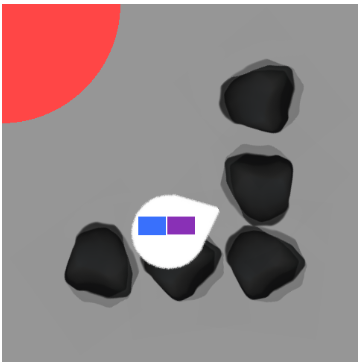

(a) Minecart

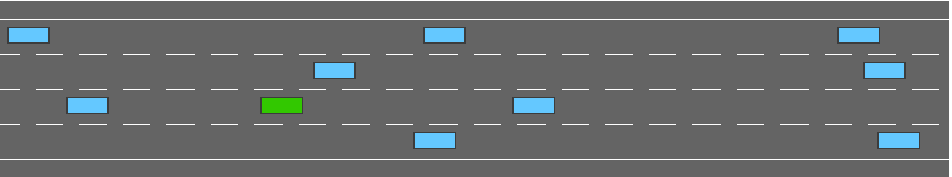

(b) Highway

OKB can approximate a CCS more effectively using fewer base policies when compared to SOTA methods.

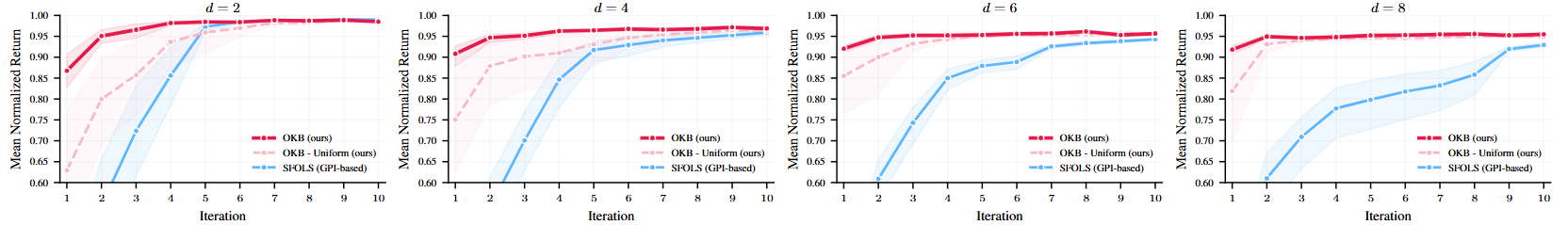

Scaling the number of reward features

As the number of reward features (d) increases, the performance gap between OKB and SFOLS (GPI-based) increases significantly.

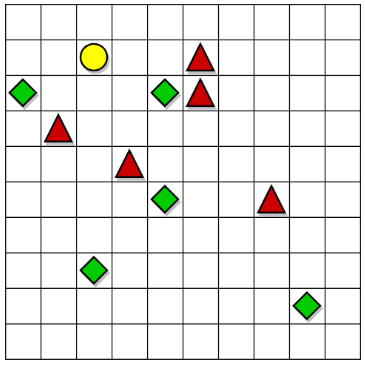

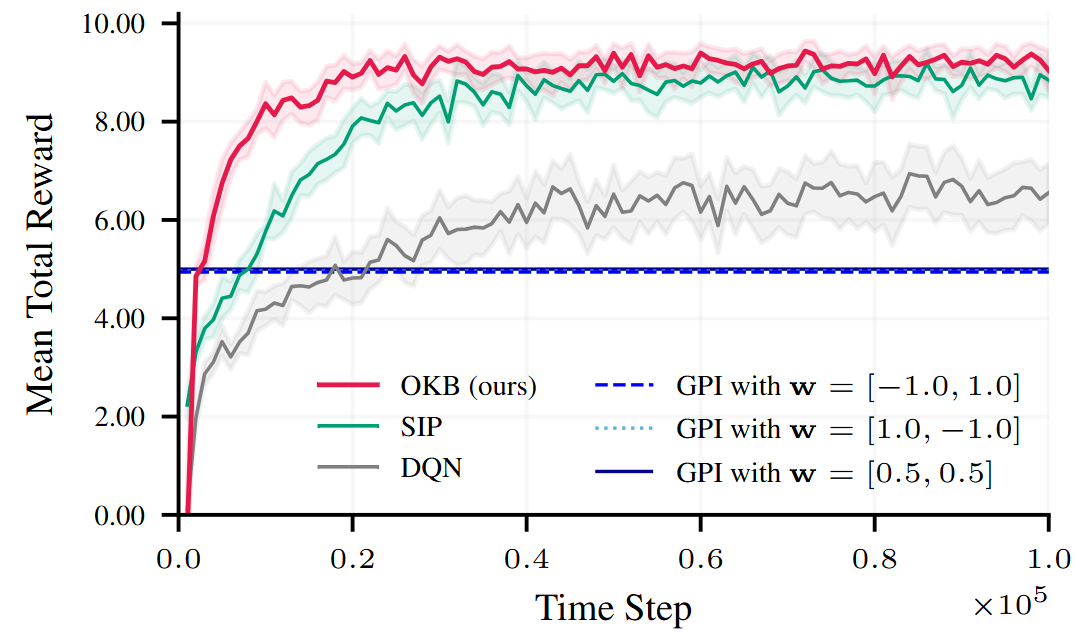

Non-Linear Rewards

After OKB learns a behavior basis \Pi_k, a meta-policy can also be trained to solve a task with a non-linear reward function.
OKB can optimally solve some classes of tasks with non-linear rewards (Prop. 4.4).

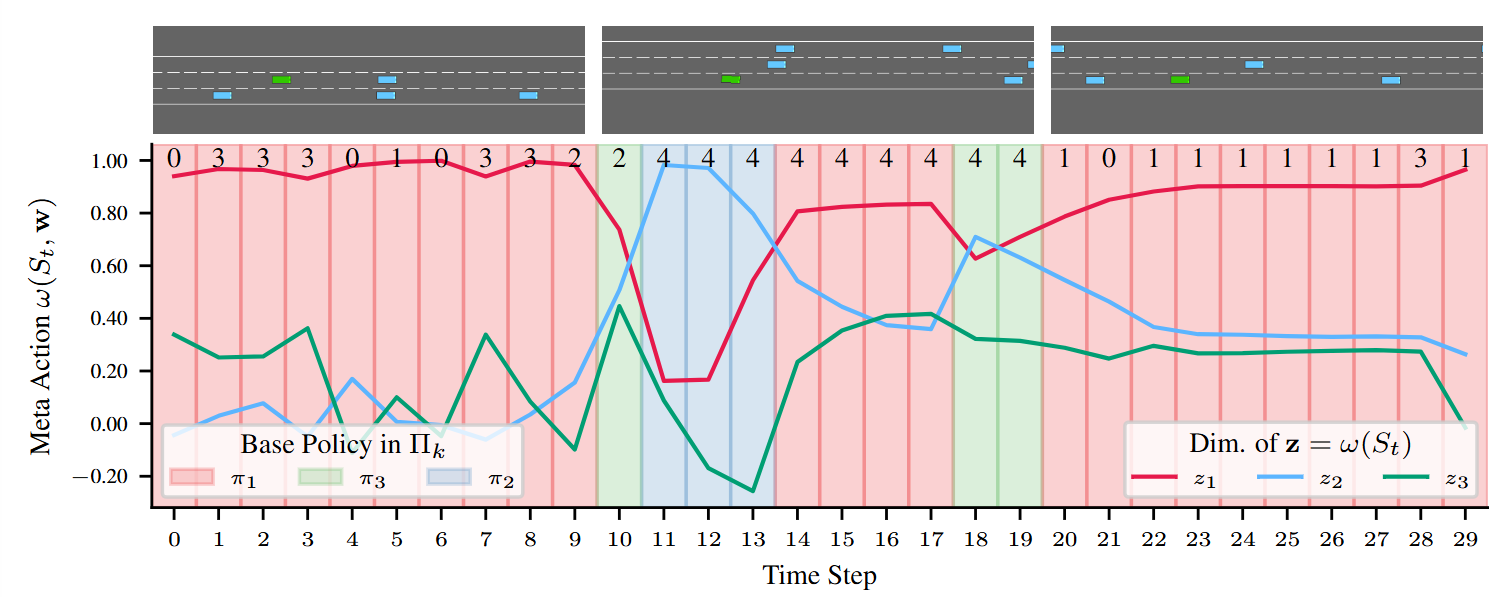

Temporally-Consistent Meta-Policy

OKB selects base policies in a temporally consistent manner — akin to options.

Summary

OKB: First method with strong theoretical guarantees for identifying an optimal behavior basis for the Option Keyboard (OK)
- Significantly reduces the number of base policies required for zero-shot optimality, given any linear reward function

Consistently outperforms GPI-based approaches
- Increasingly more as the number of reward features grows
- Expressivity surpasses that of a CCS, enabling it to optimally solve classes of non-linear tasks

Future work:
- Options with learned termination conditions
